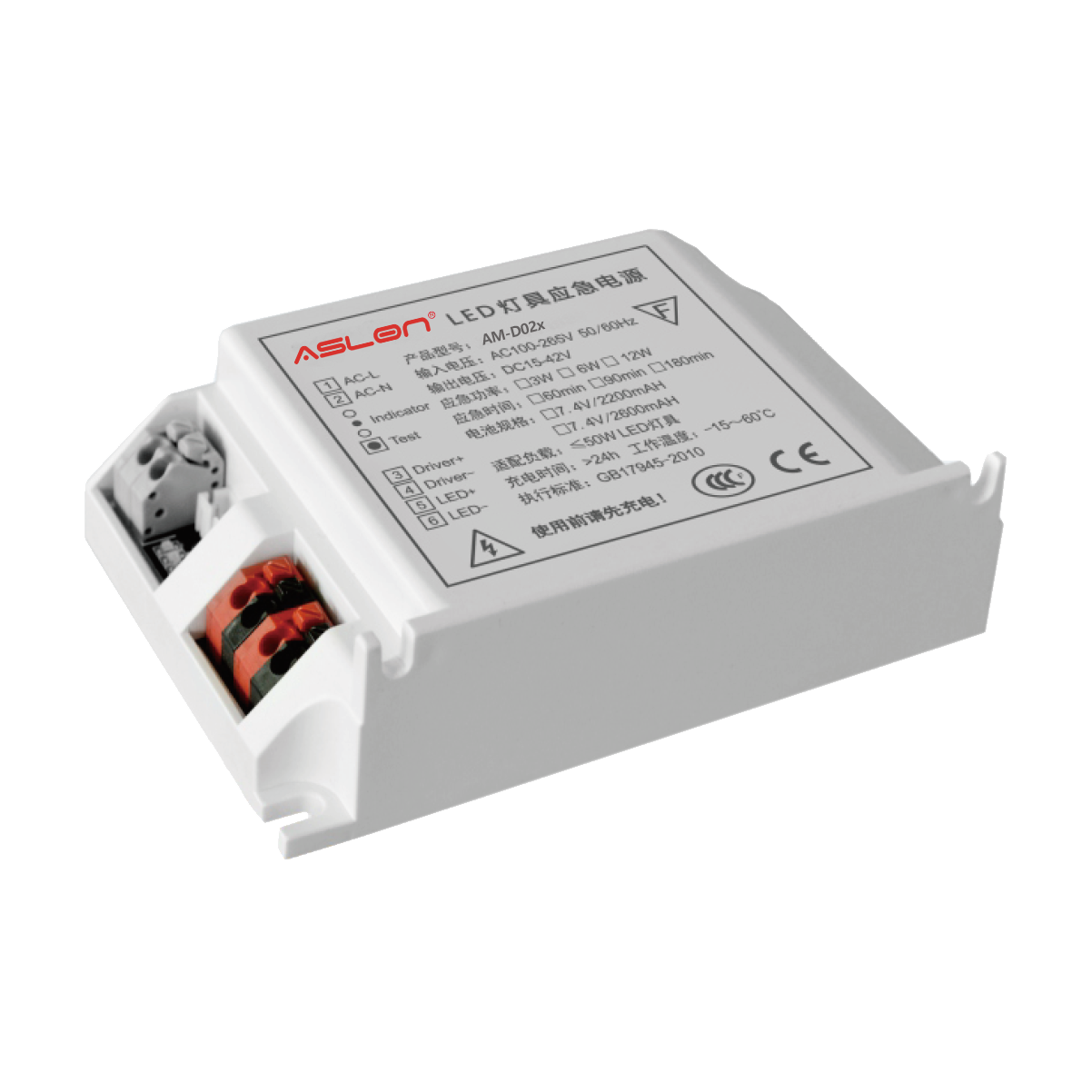

Emergency power supply

所属分类

Emergency power supply

双模多协议通讯：
支持ZigBee、RS-485单模通讯及无线组网；
支持LoRa、ZigBee多模通讯及无线组网；
能耗计量：
内部集成单相功率、电压、电流计量功能；
故障报警、故障告警机制信号状态显示；
千分调光及单体开关：
内部通过AI算法实现高精度调光；
集成物理特性，系统组网时实现单体开关；
稳定可靠：
机壳采用高强度耐海洋气候铸铝设计；
涂层采用防腐蚀喷涂，抗腐蚀、抗冲击
安全环保：
内部具有过压、欠压、短路、过载保护机制；
高功率因数及低谐波，绿色环保；
部署/安装便捷：
只需简单配置便可完成快速部署；
支持DIN35mm轨道安装和双轨四螺母安装；
无线升级：
支持OTA空中无线升级及有线升级；
个性化定制：
可根据客户需求，支持个性化定制；支
集中控制（可选择）：
支持交流通电检测机制，实现电气自动及手动无缝切换，满足应用需求

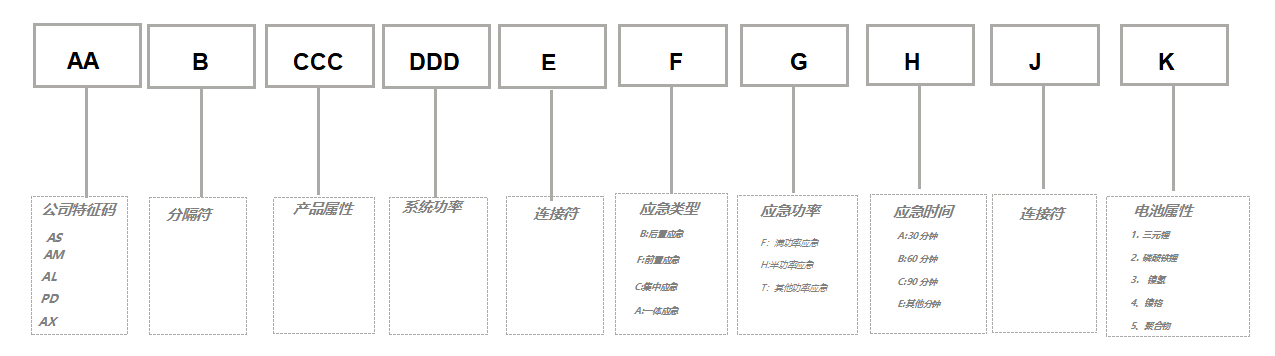

Product selection
Product model
Order number
Emergency time
Output voltage (Vdc)
Input Voltage (Vac)
Reserve injection
AS-D02XXX.FF
(Full power emergency)
AS-D02XXX.FFA.#
30min
250Vdc-380Vdc
(130Vc-200VDC)
220Vac
(110Vac)
pre-emergency
AS-D02XXX.FFB.#
60min
AS-D02XXX.FFC.#
90min
AS-D02XXX.FFD.#
180min
AS-D02XXX.FFE.#
Other
AS-D02XXX.FH
(Half power emergency)
AS-D02XXX.FHA.#
30min
250Vdc-380Vdc
(130Vc-200VDC)
220Vac
(110Vac)
pre-emergency
AS-D02XXX.FHB.#
60min
AS-D02XXX.FHC.#
90min
AS-D02XXX.FHD.#
180min
AS-D02XXX.FHE.#
Other
AS-D02XXX.FT
(Other power emergency)
AS-D02XXX.FTA.#
30min
250Vdc-380Vdc
(130Vc-200VDC)
220Vac
(110Vac)
pre-emergency
AS-D02XXX.FTB.#
60min
AS-D02XXX.FTC.#
90min
AS-D02XXX.FTD.#
180min
AS-D02XXX.FTE.#
Other
With "*" is the product series under development, please pay attention to the company's public account or official website or email to axlon@axlon-electric.com for details;
The I-V curve
PD-D01x5H0460

PD-D01x5H0270
PD-D01x5H0170
Product technical parameters
specification
argument
Rated system power
500W(drive power)+3W
Rated operating voltage
100-240V~, 50/HZ, 277V~ for USA;
Leakage current
≤ 0.75MA@IEC60598-1, 240V/60HZ~ (effective grounding);
Conversion efficiency
93%
Power factor
≥0.95, THD≤15%
MTBF mean time to failure
≥50000hrs, MIL-HDBK-217F(@25℃, 80% load 220V~);
Inrush current
Cold start 70A(Twidth=1000uS at 50% Ipeak)@220V~
Surge protection
DM-4KV, CM-6KV;
IP protection level
Default IP65 (IP67 optional);

Environmental parameter
Working temperature -35~+55℃, working humidity: 0-95%RH, non-condensing, storage: -40~+85%;
Electromagnetic compatibility
In line with IEC61347-1:2015, GB19510-1:2009 standards;
Product application

tunnel

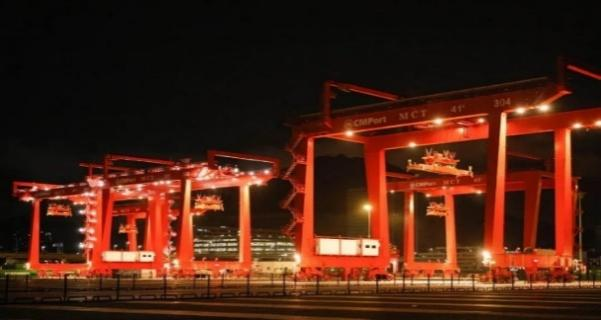

Port machinery
